PC Fax Modems and Fax Boards: Splitting T.30 Between Card and Host

One machine, cut in half

A Group 3 fax machine bundles four things into one box: something that turns paper into a scanned image, a modem that puts that image on a telephone line, an implementation of the T.30 call procedure that decides what is sent when, and a printer that turns the far end's transmission back into paper. A personal computer already had the first and the last of these, in better form — the document was born as a file, and the received page could be looked at rather than printed. What the PC lacked was the middle two: an analogue line interface with fax-rate modulation, and T.30.

A fax card supplied the line interface unambiguously. Who supplied T.30 was a design decision, and it was negotiated across a serial interface between the host (the DTE) and the modem (the DCE). The command framework was the AT convention inherited from the Hayes Smartmodem, eventually standardised by the ITU as Recommendation V.250; the fax extensions live in that framework as the +F commands. TIA's Class 1 standard is written for exactly this arrangement, assuming a serial asynchronous connection over EIA/TIA-232-E (ITU-T V.24).

What the service classes actually divide

The service classes describe the DCE's side of the bargain: how much of the fax procedure the modem is willing to perform, and therefore how much the host must perform. Their standards anchors sit in two places at once — a TIA standard in the United States and an ITU-T Recommendation internationally — which is why the same class is routinely cited under two different document numbers.

The numbering invites the wrong reading. Class 2 looks like an improvement on Class 1, and Class 2.0 like a point release of Class 2. Neither is true. The classes are alternative contracts, and the plainest statement of what they contract over comes from a modem manufacturer's own developer documentation.

Why the untidier arrangement kept its advantage

On paper, Class 2 is the better engineering. The timing-sensitive parts of T.30 — response windows, retrains, page confirmations — sit on a dedicated controller instead of on a general-purpose operating system that may be busy repainting a window. The host sends a page and receives a result. That is a clean interface, and it is the one a systems designer would draw first.

What defeated it was the field. The population of machines on the other end of the line was enormous, long-lived and irregular: terminals that negotiated capabilities they did not have, that answered too early, that failed a particular retrain in a particular way. Coping with that is a long accumulation of small accommodations, and where those accommodations live determines how quickly they can be made. Multi-Tech's guide states the trade-off directly: the extra burden on the host is what allows the host software to accommodate new fax features when its author wants them, and to fix fax incompatibilities without waiting on the modem vendor. A Class 1 fix ships as a software update. A Class 2 fix ships as a new modem.

This is legible in how fax software was written. Packages such as HylaFAX carry their own T.30 implementation and their own body of per-modem knowledge, and class is the attribute their documentation records for every modem: the project's supported-modems page lists each model against a Class 1, Class 2 and Class 2.0 column, and notes that a modem supporting several classes can be configured to use any single one of them but not more than one. Class had to be settled before anything else about a modem mattered, because it determined which program was responsible when a fax failed.

Fax modem, fax board, softmodem

The service-class story describes one specific device: a single-line fax modem presenting an AT-command interface to a host. It is easy to over-extend it to everything with the word “fax” on the box, and two other classes of hardware do not fit.

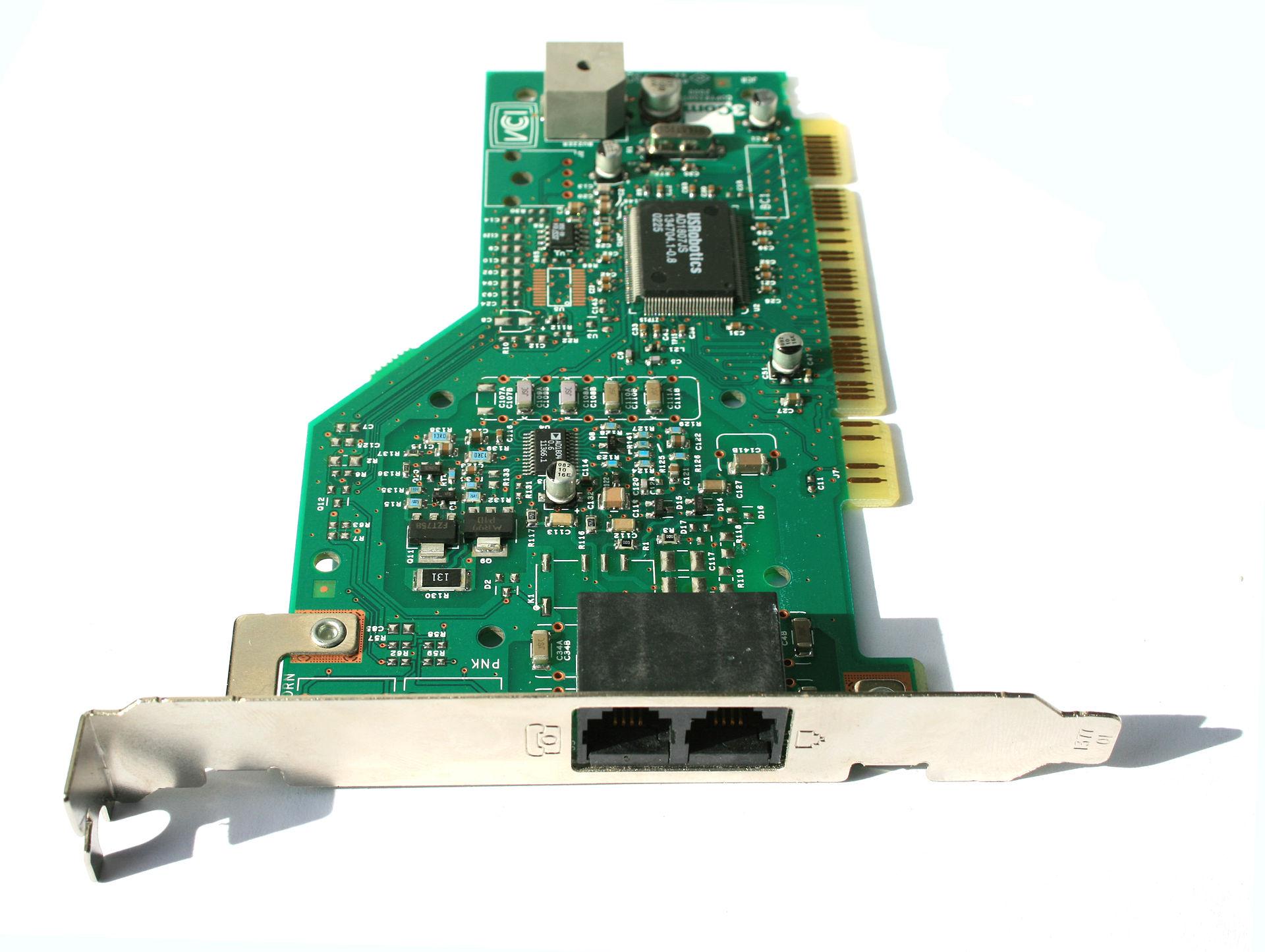

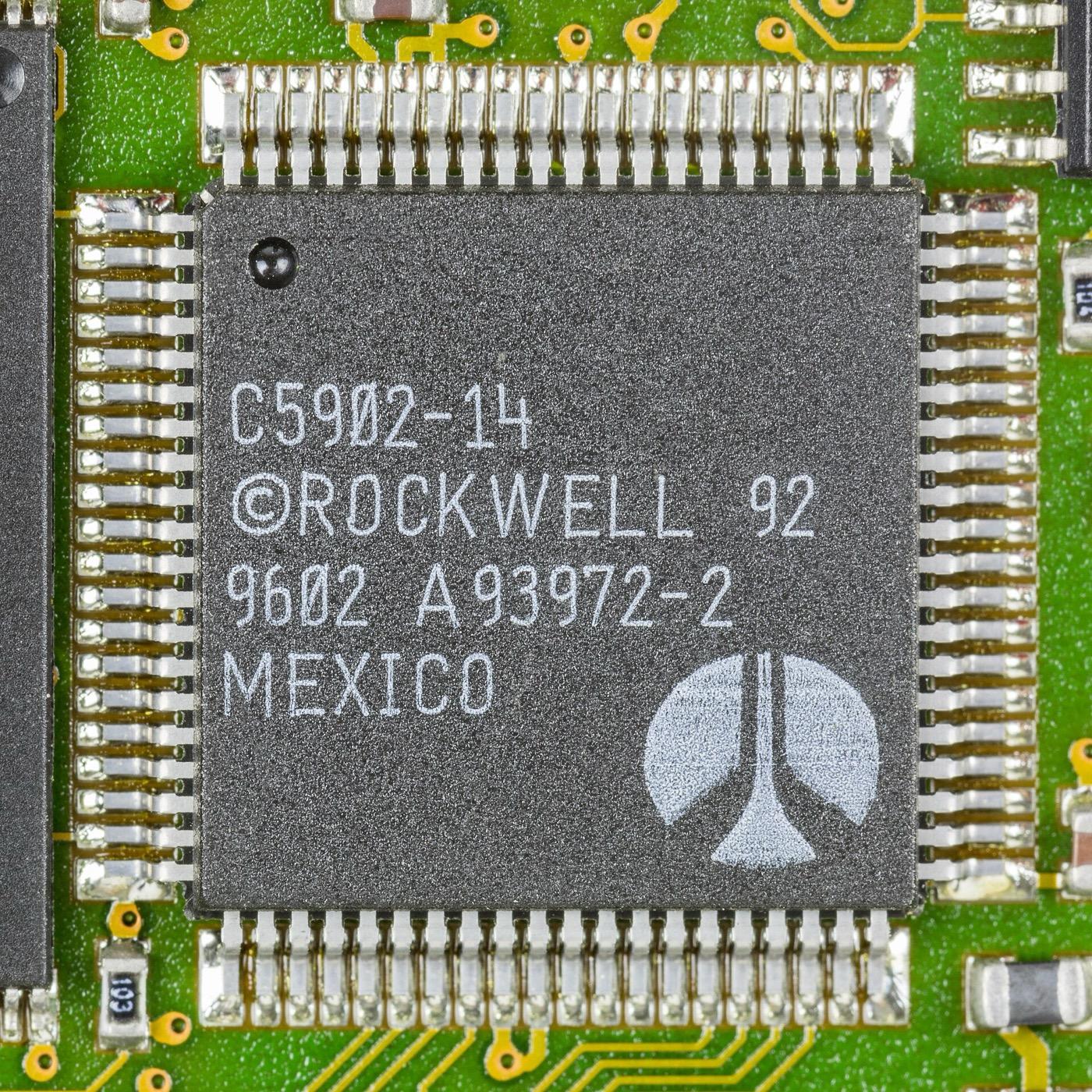

• Single-line fax modem — internal card or external unit, one loop-start line, an AT-command DTE/DCE interface, and a declared service class. This is the device the standards describe, and the one the class debate is about.
• Multi-channel fax board — GammaLink's GammaFax MLCP-4 and Brooktrout's TR114 and TR1034 families are the recognisable examples. These carry their own DSPs and several loop-start or T1 interfaces, and typically expose no AT-command interface at all; the host drives them through a vendor API. Channel densities are specific to a board and DSP generation and should be taken from a named datasheet rather than assumed.
• Controllerless softmodem — by the late 1990s many internal “fax modems” were HSP or HCF designs in which the host CPU ran the modem itself, below the level the service classes describe. This is a third arrangement, not a variant of the first two: it puts the timing-sensitive modulation itself on a multitasking desktop rather than on dedicated silicon, and the class vocabulary has no term for it.

1985 or 1986? Say which you mean

The origin story of the PC fax board is usually told as a single dated fact, and it does not survive contact with the record. The month-by-month sequence below is the one the secondary literature repeats, and it descends from a participant's own later account rather than from contemporaneous trade reporting, which this page has not read; only the museum entry in the middle rests on an independent catalogue record. Even so, the sequence is enough to show “first” landing in a different year depending on which milestone is meant.

1. April 1984

   GammaLink announces a 9600 bps Rockwell-chipset plug-in card for the IBM PC — a data modem, not a fax card.

2. August 1985

   Working Group 3 fax software is delivered, making a functioning PC fax system.

3. December 1985

   A two-board PC fax solution is announced.

4. Catalogued as 1985

   The Smithsonian's GammaFax card, serial #1004, is recorded as number 4 of the first batch of ten hand-assembled units, and described as being used to let a personal computer print directly to a facsimile machine.

5. June 1986

   The redesigned single-board GammaFax product ships. Other entrants — JT Fax, FIT Fax, Panasonic — follow by the end of 1986.

Both 1985 and 1986 are defensible: the first is the first working system, the second the first shipping single-board product. The archive's practice is to state the milestone rather than the superlative. The Computer History Museum's folder of GammaLink publicity photographs covers both a single-line GammaFax PC board and the multi-line MLCP-4 — the two device categories above, promoted by one company.

The endpoint moves to the desk

The Smithsonian's description of its GammaFax card contains the whole shift in one phrase: the card let a personal computer print directly to a facsimile machine. On the sending side the document never became paper. It went from an application to a modulated signal, and the thing at the end of the phone line was no longer a machine that scanned but a computer that composed.

The software half caught up in due course. Microsoft's documented Fax Service is a TAPI-compliant service that lets users send and receive using either a local fax device or a shared network fax device, with inbound routing, device and server configuration, and archiving of sent faxes, extended through a Fax Service Provider API, a Fax Routing Extension API and a Fax Extension Configuration API. Named consumer applications such as WinFax occupied the same position from the other direction. By that point the fax hardware — Class 1 card, Class 2 modem or multi-line board — had become a peripheral of a document system rather than the document system itself.

One asymmetry remained, and it is the reason this story does not end tidily. Outbound faxing from a desktop is clean, because the sender knows what it is sending and to whom. Inbound faxing is not, because Group 3 carries no recipient field: a received fax arrives addressed to a telephone line, not to a person. Solving that required inference — a number per user, digits delivered by the PBX, identifiers matched against a table — and it is where the fax server, rather than the fax modem, becomes the subject. The card had already done its part: it moved the endpoint from the machine in the corridor to the desk.
